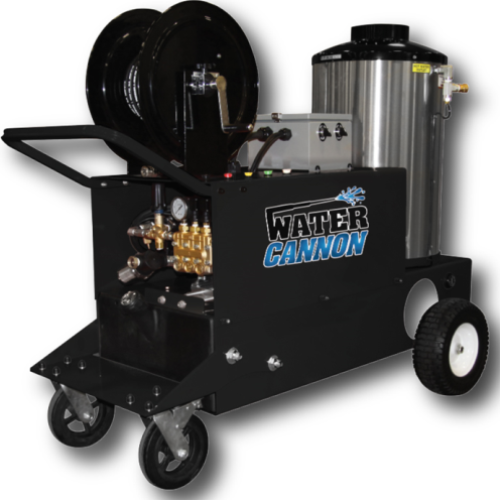

Industrial Oil Fired 4GPM 3000PSI 7.5Hp Electric 220Vt 1Ph 400000 BTU

Our industrial hot water series offers the most diverse range of performance specifications available. Low speed pumps and motors ensure reliable and continuous service while offering minimal downtime. Featuring pressures up to 8,000 PSI and up to 12.0 GPM in water now. Units can be factory outfitted with optional auto start and stop with time delay, hose reel, wheel kits and more. Call our industry expert customer service team to learn more.

Pump

• Industrial Duty Triplex Plunger Pumps
• Oil Bath Crankcase
• Stainless Valves
• Brass Manifold
• Thermo Pump Protector

Electric Motor

• 17S0 RPM
• TEFC
• Full Frame
• 1.15 Service Factor
• Thermal Overload Protection
• Continuous Duty
• 3 Phase (High Efficiency)

Electrical Control Panel

• Nema 4
• Water Tight
• Easy Access
• Heavy Duty On/Off Cam Switch Or Optional Auto Stop/Start With Time Delay

Heating Coil

• Schedule 80 & 160 Pipe
• Elliptically Wound &.Stretched
• No Seam Welds
• Structurally Braced To Reduce Vibration & Pipe Wear
• Sealed with Ceramic Blanket
• Stainless Steel Housing
• Thermostat Controlled Optional CRN/ASME 30.1 Pressure Vessel Coded Coils

Wayne Burners

• Oil Fired
• Adjustable Thermostat
• On/Off Switch
• Cleanable Fuel Filters
• North American Made
• Dependable
• Serviceable

Frame

• All Welded
• Powder Coated
• Heavy Gauge Bent One Piece Plate
• Tip Ahead Shroud With Built in Belt Guard Designed to Fully Expose All components for Ease of Maintenance
• 10 Gallon Poly Fuel Tank (15/20/50 HP Fuel Tank Optional)
• Hose Reel Compatible
• Portable Units Are Mounted On Two 13"Solid Rubber Tires And Two 8" Heavy Duty Casters (Optional)
• Stationary Units Built with Skid Style Frame

Includes

• Liquid Filled Pressure Gauge
• Adjustable Pressure Regulator
• 48" Gun And Wand Assembly with Quick Coupler System
• 0, 15, 25 and 40 Degree Nozzles
• 1 Soap Nozzle
• Chemical Injection System
• 50 Feet Of High Pressure Hose

Options & Accessories

• Hose Reel
• Wheel Kit Add (-WK)
• Remote
• VFD
• PLC
• Pressure Transducer
• Auto Stop/Start Option
• Call For Option Pricing

For a 7.5 HP electric motor running on 220V single-phase (1PH), you would typically use a NEMA 6-50 plug and corresponding receptacle. The NEMA 6-50 configuration is designed for 220-240V single-phase applications and is commonly used for high-power appliances, including motors like this 7.5 HP unit.

The cord should be rated for the appropriate amperage. For a 7.5 HP motor at 220V, the full load amperage is typically around 34 amps. Therefore, a cord with a rating of 50 amps, such as an 8 AWG wire, is recommended to ensure safety and compliance with electrical codes.

Summary:

Plug Type: NEMA 6-50
Cord Rating: 50 amps
Wire Size: 8 AWG (minimum)
Consult your local electrical code compliance authority

Dimensions: 48"L x 26"W x 43"H
California Residents - Click here for Prop 65 WARNINGS





Manufacturer:	Water Cannon
SKU:	25M10
Cold or Hot Water:	Hot Water
Drive Type:	Flange/Coupling Drive
GPM:	4
PSI:	3000
Volts-Phase:	220V - 1Phase
