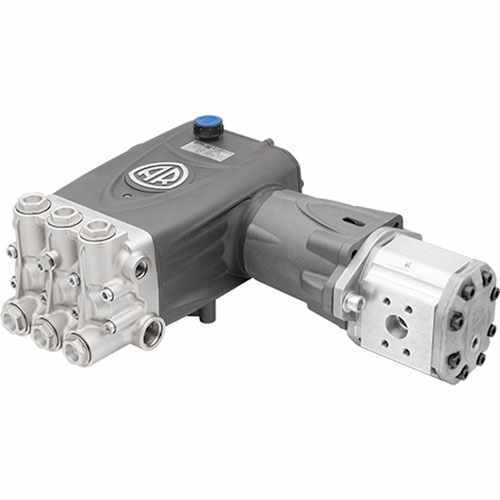

Hyd-Rtx100-Ar-26.4GPM-1740PSI-Hydraulic Driven Pumps

Motor - Sauer Danfass | 3/4” Inlet and Outlet | Pump - 1” F Inlet and 1/2”F Outlet

Hydraulic Pressure Washer

When using a hydraulic pressure washer, it's essential to understand two key specifications: Hydraulic Gallons Per Minute (GPM) and Hydraulic Pounds per Square Inch (PSI).

These measurements determine how effectively the washer operates and should not be confused with the pumps high pressure water and flow performance.

For optimal performance, the RTX100 Pump requires:

• Hydraulic Fluid Flow Rate: 18.5 GPM
  This means the pump needs 18.5 gallons of hydraulic fluid to flow through it every minute.

• Hydraulic Pressure: 3045 PSI
  The pump operates at a pressure of 3045 pounds per square inch.

Specs:

Max GPM 26.4
Max L/Min 100
Max PSI 1740
MaxBar 120
Inlet 1" F
Outlet 1/2" F
RPM 1450
Motor Max GPM 18.5
Motor Max L/Min 70
Motor Max PSI 3046
Motor Max Bar 210
Motor Inlet 3/4"
Motor Outlet 3/4"

RTX-Series-Pumps.pdf

SKU:	HYD-RTX100
Brand:	AR
GPM:	26.4
PSI:	1740
RPM:	1450
