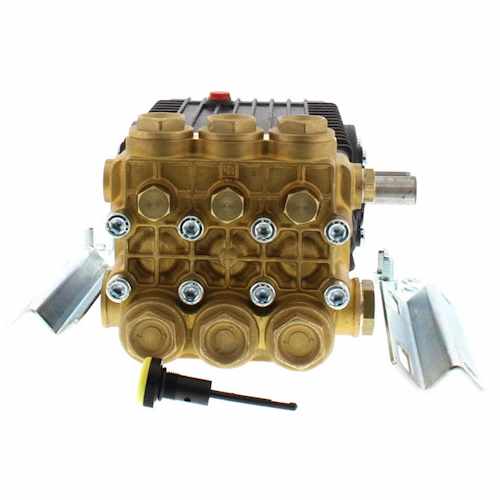

General Pump TSF2221 3000 PSI 10.2 GPM Solid Shaft

By : General Pump

SKU : TSF2221
  • Quick Specs
  • PSI: 3200
  • GPM: 10.2
Regular Price: $848.00
In Stock
Quantity:
Description

The pumps in the General Pump TSF Series are designed to deliver high pressures of up to 3,500 pounds per square inch depending on the model. In addition to being among the top performing pumps on the market, these units are also among the most durable and feature multi-year warranties as a testament to their longevity. Recognized for their reliability, all General Pumps from Water Cannon also feature lifetime guarantees on the manifolds.

The manifolds of the TSF series pumps are brass forged and precision machined to stand the tests of time and extreme use. As further evidence of their survivability, even accidental freezing cannot warp these pumps. The pumps have an innovative seal design to extend seal life. The plungers on the pumps improve thermal shock resistance and the valve caps’ design improves hydrostatic performance. General Pumps' large capacity oil crank cases dissipate excess heat which extends the lives of these pumps significantly as well.

·Maximum inlet pressure: 125 PSI

·Maximum fluid temperature: 165 °F

·Inlet port thread: 1/2" - 14 BSP-F

·Discharge port thread: 3/8" - 19 BSP-F

·Shaft diameter: .945 in./24 mm

·Pump dimensions: 13.84" x 9.8" x 7.7"

·Crankcase oil capacity: 31.0 oz.

·Use GP series 100 oil, product group: X

·31.04 oz. oil capacity - Better cooling

·O-ring groove in crankcase vs cover - Eases installation - Increases strength of rear cover

·Exclusive and innovative plunger guide design allows for even greater ceramic thickness - Decreases possibility of cracking from thermal shock

·Forged crankshaft - Increases load potential - Reduces fatigue

·Oversized 2-piece white bronze connecting rods with 2, 8 mm bolts and special oil reservoirs - Increases strength and stability - Friction and heat reduction extends life

·Piston guide bushings in an exclusive Teflon, graphite and bronze - Superior strength - Easily replaceable - Smoothest possible surface results in longer seal life

·Valve Plugs vs Plate - Easy access to single valve - Quick repair/maintenance

·Stacked Valve Design for Better Efficiency - Efficient water inlet - Closer to plunger

·Valve Poppets Are Machined Not Stamped - Better surface finish - No cracking - No stress points from stamping

·Replaceable Inlet Valve Seat - Protects manifold from cavitation damage

·No Inlet Valve Plug - Increased hydrostatic - Increased durability

·White ceramic plungers - 99% alumina-ceramic - Competitors plungers are only 97% - Increases resistance to pitting and wear

·Improved low and high pressure seal - Increases life - Reduces maintenance

·16 or 18 mm plungers - Offers wider range of flows and pressures

·Nickel plated plunger guides - Smoothest possible surface results in longer seal life - Superior strength

·Oversized cylindrical roller bearings - Higher load capabilities - Increases life of pump

·Two sight glasses - Easier to monitor oil levels - One is bayonet style for easy replacement

·Fully anodized crankcase - Better protection against Environment

Helpful tips to keep your pressure washer pump operating at peak performance

Warning California Proposition 65
Detectable amount of chemicals known to the State of California to cause cancer, birth defects or other reproductive harm may be found in pressure washing equipment, accessories and exhaust. For More Information Visit www.p65warnings.ca.gov

Specifications

GTIN: 682491114710
Manufacturer: General Pump
SKU: TSF2221
PSI: 3200
GPM: 10.2
Drive Type: 24mm Solid Shaft
