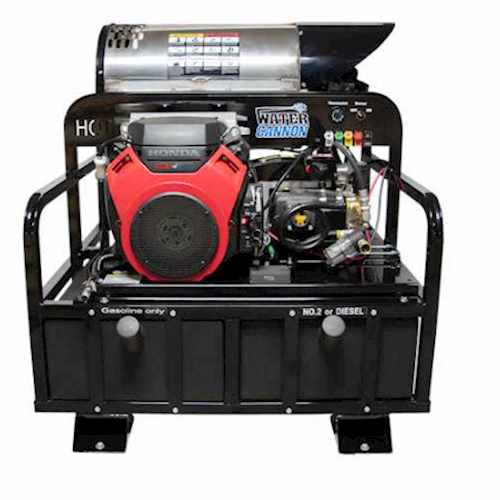

130 Degree F Heat rate of Rise | 5.5GPM - 3500 PSI | US Made Schedule 80 ASTM 53 Grade Black Steel Horizontal Heating Coil | 3V Belt Drive| Stainless Steel Coil Top Wrap and SS Panel | Hour Meter with Status Lights | Reliable Wayne SDC 12 Vt Burner | Extended Run Time Fuel Tanks | Adjustable Thermostat | Honda GX690 with Electric Start | GP TS2021 Low-RPM Triplex Pump
This unit has the right features to assure you can tackle all types of applications at any location. Factory Option setup for 2-trigger operation with two sets of accessories is available and can be ordered by phone 800-333-9274. Achieve long run times with our 12-gallon diesel and gasoline fuel tank capacity. Powered by Honda GX690 with Electric Key Start - 18 Amp charging system and battery box, make this Water Cannon pressure washer wholly self-contained. Durable Heavy-Duty US made steel frame with corrosion resistant coating, forklift accessible for easy removal or installation. A 3V X belt drive system powers a low RPM General Triplex TS2021 Pump, providing balanced power transfer for continuous duty. Factory tested multi-point QC inspection to ensure reliability and performance.
Dependable Wayne SDC burner delivers a 130-degree Fahrenheit water temperature increase: maximum 210 degrees Fahrenheit, and a highly efficient US made schedule 80 coil with a molded combustion chamber delivers hot water within seconds. The Wayne SDC Oil Burner is designed for applications where an AC power source is not an option. Wayne uses a suitable cad cell flame sensor to control the motor, igniter, and solenoid valve. Interrupted duty ignition extends battery life by only drawing full load current during the ignition period. Continuous duty ignition is also available. Available with a pump-mounted solenoid blocking valve that delivers smoother light-offs and cleaner shutdowns. The SDC burner is conveniently powered by a standard 12 Volt direct current power supply.
A Laser Aligned 3VX belt drive system provide balanced power transfer for continuous duty. Factory tested multi-point QC inspection to ensure reliability and performance.
Built-in safety features, such as a Rupture Disk, Safety Pop-off Valve, pressure relief valve safeguards the pressure washer and operator. While the thermo-sensor valve prevents pump from overheating in bypass mode. Standard user-friendly features include easily accessible Adjustable PAC Thermostat, Flow Switch and a block mounted Unloader Bypass Valve.
Hot Water Pressure Washing Applications include cleaning vehicles, equipment, vent-hoods, concrete, houses, trucks, fences, decks, buildings, parking lots, drive pads, condensers, marinas, car lots, operating surface cleaners, roof cleaning, skid steer, chicken houses, rail yards, or hog farms we have you covered. Ready to mount on an open trailer, enclosed trailer, van, truck body or truck bed. Attach it to a garden hose or a mobile water supply tank and Blast away with your Water Cannon.
Battery Not Included.
- Manufacturer Recommends a Group 24, Professional Grade Marine/RV Deep Cycle Battery rated for 1000 MCA & 800 CCA.
- Marine Batteries are manufactured with the Cold Cranking Amps, Reserve Capacity, and vibration resistance to quickly complete your demanding Pressure Washing Applications.
Features
- Heating Coil is Made in the USA – Sch. 80 ASTM 53 grade Black Pipe Seamless Electronically Welded. Not Imported Steel
- Rate of Heat Rise – 130 Degree F – Delivers True High Temp Cleaning Power. Max temp
- 3 V Belt Drive Offers Even Power Transfer and Continuous Duty
- 12 Gallon Gas Tank Capacity for Extended Run Time (2 each 6-gallon gasoline tanks)
- 12 Gallon Poly Diesel Fuel Tank
- Adjustable PAC Thermostat Control from Ambient to 210 Degree F max temp
- 12 Vt DC Wayne Burner – With Molded Combustion Chamber for Easy Access
- Heavy Duty Skid Frame with Lifting Hook
- EPA/CARB Approved in All 50 States
- Stainless Steel Burner Cover and Control Panel with Diagnostic Lights - Hour Meter
- Engine Oil Drain Kit Make Service a Snap When Changing Oil
- Heavy Duty Unloader Valve Block Mounted
- Plumbed for Remote Tank Bypass to Remote Tank
- Pressure Relief Valve - ST7 Flow Switch – Rupture Disc
- Poly Battery Box- Battery Not Included, Manufacturer Recommends a Group 24, Professional Grade Marine/RV Deep Cycle Battery rated for 1000 MCA & 800 CCA
- TS2021 General Belt Driven Ceramic Plunger Pump
- Color Coded QC Spray Tips 0 -15 - 25 – 40 degree
- 50’ R2 High Pressure Hose with QCs, Trigger Gun and 48 Inch Vented Lance
Dimensions: 54"L x 26"W x 48"H
