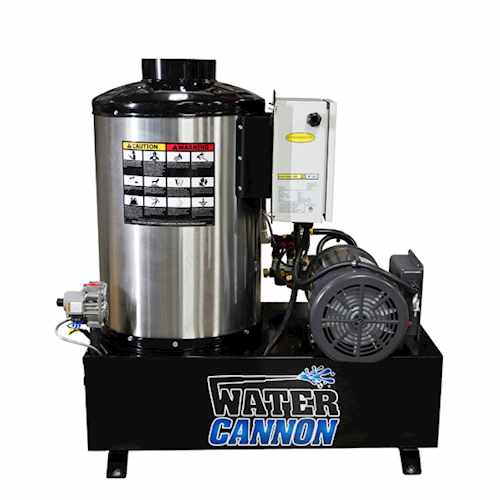

Industrial Hot Water 4GPM-3000PSI 7.5Hp Motor 208V-3Ph-390,000BTU Lp

industrial gas fired hot water pressure cleaning system, 4 gpm @ 3000 psi, general pump, belt drive - 1750 rpm, 7.5 hp tefc electric motor: 208 volt - 3 ph - 1.25 service factor - heavy duty cam switch, 390,000 btu propane fired burner, fully welded/powder coated steel stationary frame: cw/ tip ahead shroud & integrated belt guard

Innovative Features

·         Quick Kleen Burner System

Each model in this series is equipped with a Quick Kleen Burner System. The burner orifices should be cleaned every 6 months, and this system makes it easy to do so. You simply disconnect the wiring harness, remove 2 bolts and your burner will slide out with ease. Once you have cleaned your burner, the apparatus will easily slide back into place with a little push. Quick and Easy Maintenance.

·         Quick Adjust Air Flow Vents

  The Quick Adjust Air Flow Vents allow you to adjust the amount of air that is flowing into the burner chamber. This adjustment allows you to maximize the efficiency of the burner by fine tuning the CO levels to optimize emission levels at different altitudes. This allows you to adjust your air flow quickly and simply.

·         Tip Ahead Shroud with Integrated Belt Guard

  The Tip Ahead Shroud allows you to easily access all your motor and pump components in seconds. You simply loosen the T-Nuts on both sides of the unit and pull the shroud forward. The belt guard is integrated into the design of the shroud for maximum serviceability and safety. This ensures that your belt and pulley system will never be exposed.

·         Nema 4 Watertight Control Panel

  Electrical Nema 4 watertight control panels complete with hinged covers are utilized for easy service access. No unnecessary electronics are used when designing these units, making service and diagnostics simple. Available with standard on/off switch or optional AutoStart/stop timer shutdown. Standard on 4 - 12 GPM models.

·         Electric Motors

Totally enclosed fan cooled full frame 1750 RPM electric motors. Single phase equipped with a 1.15 service factor, 3-phase equipped with a 1.25 service factor, both are high efficiency.

·         General Pumps

  Italian made industrial heavy-duty triplex plunger pump with oil bath crankcases, stainless steel valves and brass manifolds. General Pumps are the most widely used pumps in the world. (Other Pump Brands are Also Available Upon Request)

·         Drive Systems

  Belt Drive - large diameter pulleys are used to reduce belt wear.

 Flange and Coupling Drive - Available for those who do not prefer belt drives.

·         Heating Coil

  Elliptically wound cold process of stretched reduced full body normalized ASTM A53/APIPSL schedule 80 or 160 pipe. The coil is structurally braced to minimize pipe wear and vibration. It is sealed with a ceramic blanket in a stainless-steel housing.

 Optional CRN/ASME 30.1 Pressure Vessel Coded Coils

·         Burners

  Quality North American made propane gas burners and controls with adjustable thermostats are used for efficiency, dependability and serviceability. Units are equipped with Quick Kleen burner apparatuses. Burner jets have 6 oxygen orifice inlets to ensure maximum burn and minimize CO results.

·         Frame

  Rugged 11 gauge and 1/4 inch bent one piece plate steel frame is fully welded with a powder coat finish. Frames are equipped with 11-gauge steel shrouds with integrated belt guards for maximum serviceability.

  Also Includes

·         These units include  a liquid filled gauge, adjustable pressure regulation, trigger control and 48 inch insulated wand assembly, 50’ of high-pressure hose, high pressure chemical injection, 5 nozzles and a poly float tanks on 4 - 12 GPM units.

Manufacturer:	Water Cannon
SKU:	22P12-208
Drive Type:	Belt Drive
Volts-Phase:	7.5 HP TEFC ELECTRIC MOTOR: 208 VOLT - 3 PH
Cold or Hot Water:	Hot Water
RPM:	1750
GPM:	4
PSI:	3000
BTU:	390,000
